Petrol - Mixer

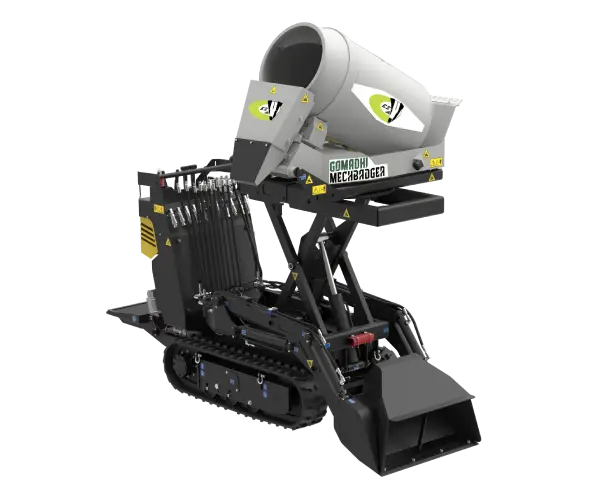

Gomadhi MECHBADGER Mixer Petrol
The Gomadhi Mechbadger Mixer Is A Compact, Tracked Mixer Designed For Mixing Materials Such As Concrete, Mortar, Or Other Aggregates, While Also Being Able To Transport Those Materials To Different Locations. Focuses On Versatility, Ease Of Use, And Performance In Tough Conditions.
Technical Specifications
| Engine | Honda GX390 11.7HP |
| RPM | 3600 |
| Starting | Tear-Off Manual |
| Travel Motor | 20 L/min |
| Gradeability | 70% (35°) |
| Tractive Force | 10003 N |
| Pump Services | 15 L/min |
| Pressure Services | 150 bar |
| Weight (PU + Equipment) | 841 Kg (499kg + 342kg) |
| Volume | 0.22m3 / 220 L |
| SAE Volume | 0.12m3 / 120 L |
| Speed | 4.5 Km/h |
| Fuel tank cap. | 6L |
| Max. hydraulic oil tank cap. | 33L |
| Ground clearance | 136mm |
| Track Width | 790mm |
| Track Tension | Spring and Grease |
| Rotating angle | 90°+ 90° (180° ) |
Features
- Simple and immediate ignition: thanks to the hydrostatic drive system, no frequent gear changes are required and the user can concentrate entirely on his work. Ideal for rental companies or if the user is replaced frequently.
- Hydraulically activated, pilot controlled forward and reverse lever for precision operation.
- The hydraulically activated traction system and working hydraulics can be activated independently.
- Reduction of maintenance and service costs thanks to the low-wear drive system.
- Precious time can be saved during maintenance, resulting in cost savings, the electric motor does not need maintenance.
- Optimal service access to safely perform daily checkup procedures.
- Quick access to maintenance points.
- Tracked undercarriage with hydrostatic transmission.
- Rubber tracks made in monobloc structure with steel wire core and treated steel inserts.
- 100% ELECTRIC engine, air cooling; automatic key start.
- Manually operated hydrostatic transmission with triple gear pump and fixed displacement orbital motors.
- Steering by rotating the tracks.
- Ergonomic and cushioned operator platform.
Interchangeability
By configuring the Power Unit with a single piece of equipment, you will be able to purchase the equipment indicated below at any time, which can be quickly interchanged in less than 4 minutes, you will be able to use different complete machines with a single Power Unit.
