Petrol - Loader

Gomadhi MECHBADGER Loader Petrol

The Gomadhi Mechbadger Loader Is A Compact, Tracked Loader Designed To Move And Handle Materials In Areas Where Larger Equipment Would Be Too Cumbersome. It's Built For Use In Small, Confined Spaces Like Narrow Construction Sites, Landscaping Projects, Or Any Environment Where High Manoeuvrability Is Essential Focuses On Versatility, Ease Of Use, And Performance In Tough Conditions.

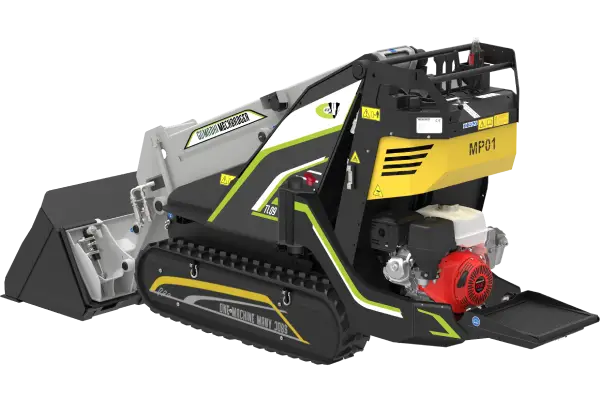

TL09 AND MP 01 (Petrol)

Engine Power	Honda GX390 11.7HP
RPM	3600
Starting - Electric	Tear-Off Manual
Travel Motor	20 L/min
Gradeability	70% (35°)
Tractive Force	10003 N
Pump Services	15 L/min
Pressure Services	150 bar
Weight (PU + Equipment)	1218 Kg (499kg + 719kg)
Pay Load	400 kg
Discharge Height	2200 mm
Speed	4.5 Km/h
Fuel tank cap.	6L
Max. hydraulic oil tank cap.	33L
Ground clearance	136mm
Track Tension	Spring and Grease
Track Width	790mm

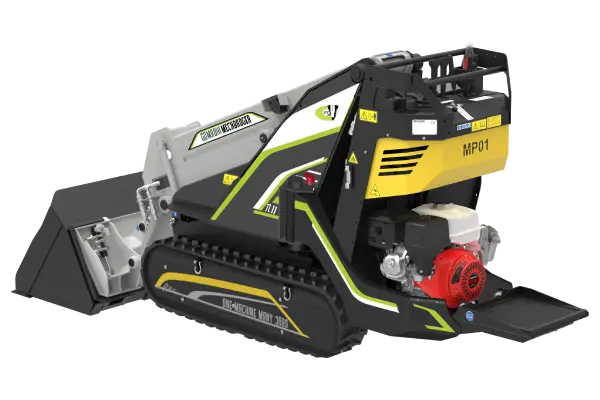

TL11 (Petrol)

Engine Power	Honda GX390 11.7HP
RPM	3600
Starting - Electric	Tear-Off Manual
Travel Motor	20 L/min
Gradeability	70% (35°)
Tractive Force	10003 N
Pump Services	23 L/min
Pressure Services	150 bar
Weight (PU + Equipment)	1218 Kg (499kg + 719kg)
Pay Load	400 kg
Discharge Height	2200 mm
Speed	4.5 Km/h
Fuel tank cap.	6L
Max. hydraulic oil tank cap.	33L
Ground clearance	136mm
Track Tension Width	790mm

Features

Simple and immediate ignition: thanks to the hydrostatic drive system, no frequent gear changes are required and the user can concentrate entirely on his work. Ideal for rental companies or if the user is replaced frequently.
Hydraulically activated, pilot controlled forward and reverse lever for precision operation.
The hydraulically activated traction system and working hydraulics can be activated independently.
Reduction of maintenance and service costs thanks to the low-wear drive system.
Precious time can be saved during maintenance, resulting in cost savings, the electric motor does not need maintenance.
Optimal service access to safely perform daily checkup procedures.
Quick access to maintenance points.
Tracked undercarriage with hydrostatic transmission.
Rubber tracks made in monobloc structure with steel wire core and treated steel inserts.
100% ELECTRIC engine, air cooling; automatic key start.
Manually operated hydrostatic transmission with triple gear pump and fixed displacement orbital motors.
Steering by rotating the tracks.
Ergonomic and cushioned operator platform.

Interchangeability

By configuring the Power Unit with a single piece of equipment, you will be able to purchase the equipment indicated below at any time, which can be quickly interchanged in less than 4 minutes, you will be able to use different complete machines with a single Power Unit.
